Plastic Injection Moulds
Today’s injection molds must meet increasingly complex and sometimes conflicting requirements: delivering the highest part quality while minimizing cycle times. HOVADUR® alloys meet these challenges through a combination of properties that make them ideally suited for high-performance molding applications
Browse Plastic Injection applications
About Plastic Injection Moulds
Plastic Injection Moulds
Our alloys are characterized by:
- High thermal conductivity
- High resistance to wear
- High elongation
- Good machining
- Good surface coatability
- Good structuring properties of surfaces
- Good chemical stability
Your advantages:
- Shortest cycle time
- Highest quality of the moulded part
- High added value
- Low machining costs
- Uniform cooling
Our range of products:
- Semi-finished products for your mould construction
- Mould inserts pre-machined close to the contour
- Steel / copper composite according to your guidelines
- Injection nozzles and ante-chamber bushings
- Generatively produced mould inserts

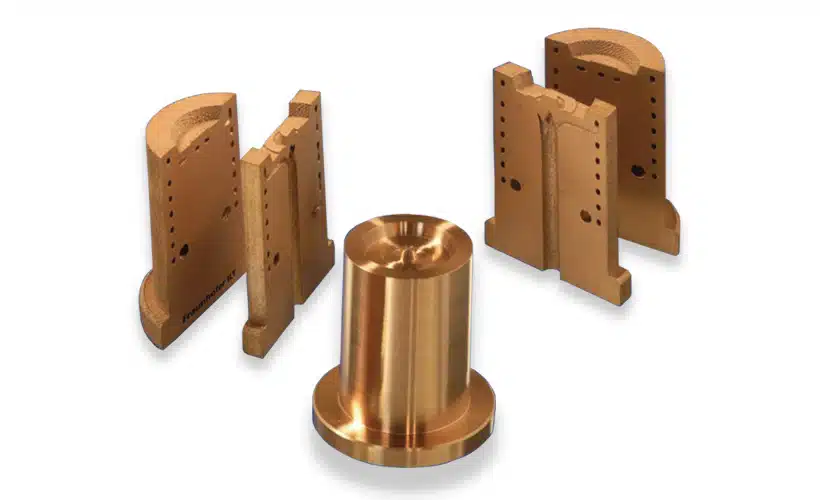

Longitudinal section of a generatively produced mould insert made of HOVADUR® K220
Types of Plastic Injection Applications
Select from the range of applications below to find out more.
Conventional production processes
Application Example: HOVADUR® Alloys in Plastic Injection Molding:
Modern injection molds must deliver top-quality molded parts in the shortest possible cycle times. To achieve this, heat introduced by the plastic must dissipate rapidly and evenly. Only with efficient heat distribution can a homogeneous temperature be maintained across the mold surface, preventing hot spots and ensuring part consistency.
Additionally, reducing the temperature from injection to demolding levels as quickly as possible is essential for minimizing cycle time.
This is where the high thermal conductivity of HOVADUR® alloys plays a critical role.
We are happy to advise you on how to fully leverage the advantages of our alloys for your specific application. Don’t hesitate to contact us.
Production of plastic screw caps:
6-cavity mould for plastic screw caps
Mould core produced by using hybrid construction

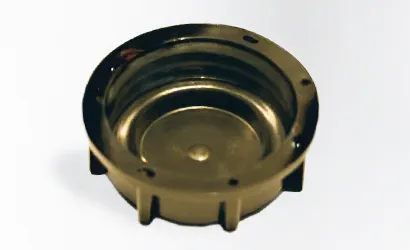

Screw cap
Cycle time is reduced by 30% when using HOVADUR®K350 and K265!
Production of buckets:

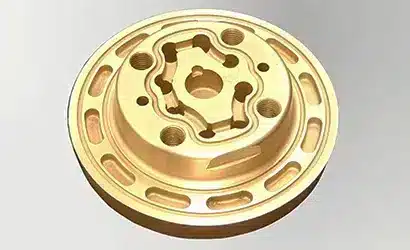

Mould insert for production of buckets

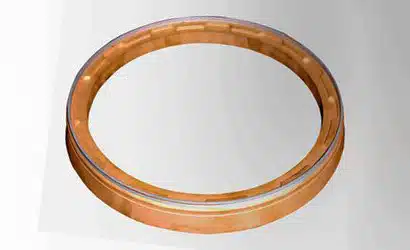

ZAKO ring for cover tool
Prevention of warp, increase in process reliability and considerable reduction of the cycle time by using Hovadur®K350!
Production of bottle crates:

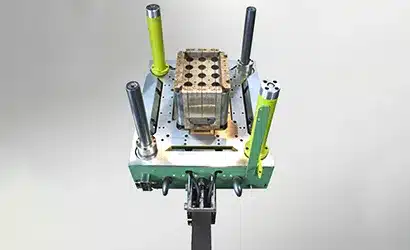

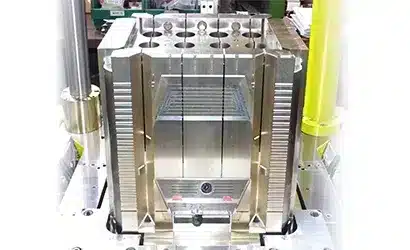

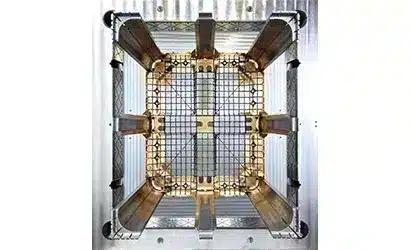

HOVADUR® in a tool for bottle crates
Better mould filling and lower injection pressure by using HOVADUR® B alloys!
Additive Manufacturing
Modern injection molds must deliver top-quality parts in the shortest possible cycle times. High thermal conductivity in the mold materials plays a crucial role in achieving this. However, in certain applications, thermal conductivity alone may not be sufficient or the HOVADUR® alloy may require localized protection against wear in high-stress areas.
For these challenges, SCHMELZMETALL offers innovative solutions through its advanced hybrid and generative processes, unlocking new possibilities.
Selective Laser Melting (SLM)
The selective laser melting (SLM) is a generative production process which is often called 3-D printing.
The selective laser melting of our HOVADUR® alloys open up completely new possibilities and degrees of freedom to the designer:
- Ideal combination of high thermal conductivity and cooling close to the contour
- Shortest cycle times
- Unlimited contouring freedom
Longitudinal section of a generatively produced mould insert made of HOVADUR® K220

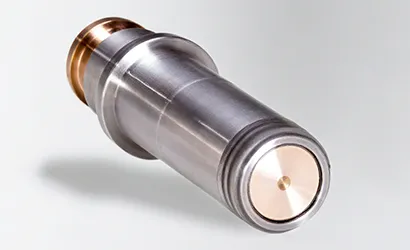

Gate-bush produced by hybrid process
Laser Metal Deposition (LMD)
Laser metal deposition (LMD) is part of cladding. During this procedure, nearly any material can be applied to a part by means of fusing.
HOVADUR® alloys plus laser metal deposition – local wear protection exactly where it is needed:
- Use of our highly thermal conductive HOVADUR® alloys, even for very wear intensive applications
Machine nozzle and ...
... sprue nozzle made of HOVADUR® K alloys
Flyer Additive Manufacturing

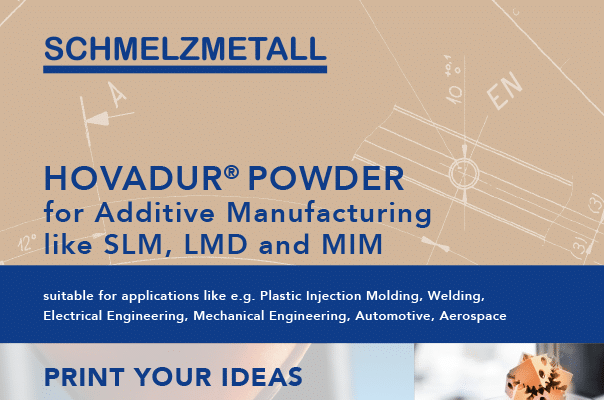

Flyer HOVADUR® Powder
